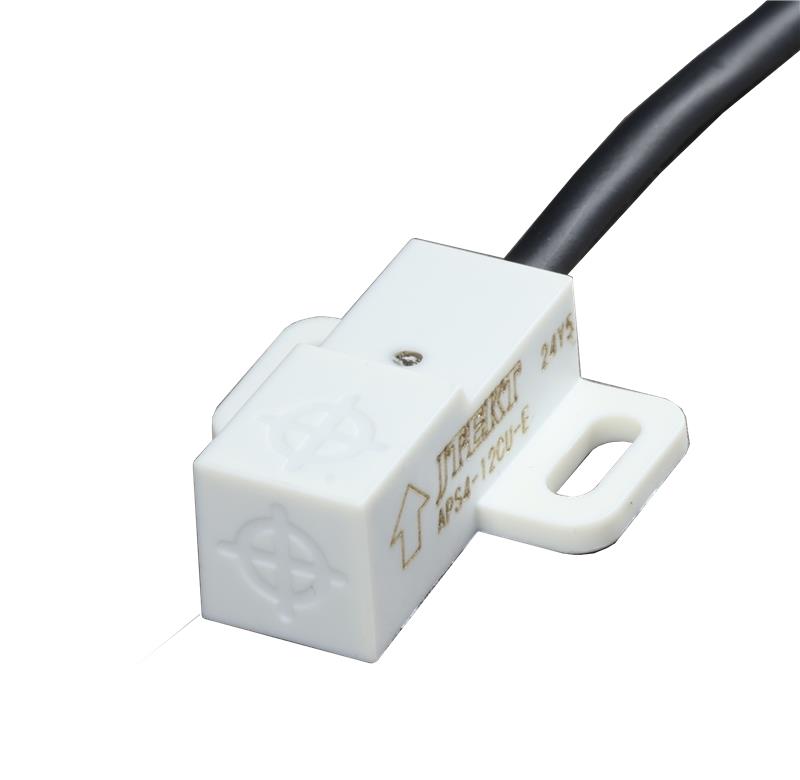

APS-CU Series
PBT Resin Square Type 3-wire DC System from October 2025
Passed Our Original Durability Tests
High Environmental Resistance Compliant with IP67
With built-in protection circuits, the APS-CU Series ensures stable operation even in harsh environments with dust or moisture.
Feature
- Excellent Dust and Water Resistance
Designed with an IP67-compliant dustproof and waterproof structure and a durable PBT resin housing, enabling stable detection even in environments containing dust or moisture. - Compact Design for Flexible Installation
The rectangular body with a top-sensing face allows easy integration into confined spaces or inside equipment. - Enhanced Reliability with Built-in Protection Circuits
Equipped with surge absorption, reverse connection, and short-circuit protection circuits as standard, ensuring stable and reliable operation.
Specification
| Model Number | APS4-12CU-E | |
|---|---|---|
| Remarks | Upper surface detection | |
| Output Form | 3-wire DC System, NPN NO *1 | |
| Effective Operating Distance | 4mm±10% | |
| Guaranteed Operating Distance | 0 to 3.2 mm | |
| Operating Cycle Frequency | Up to 200 Hz | |
| Rated Working Voltage | 12/24 V DC (10 to 30 V DC) Allowable ripple rate: 5% p-p or less |
|
| No-load Current | 15 mA or lower | |
| Output | Rated Working Current | Up to 200 mA |
| Voltage Drop | 1.0 V or lower | |
| Circuit Protection | Surge absorption circuit, reverse connection protection circuit, load short-circuit protection | |
| Indicator Lamp | Operation indication | |
| Use Ambient Temperature | -25 to +70˚C | |
| Protection Level | IP67 (IEC) | |
| Case Material | PBT resin | |
| Lead Wire | Oilproof vinyl chloride cable 1 m, Outside diameter (Approx. Φ6) 0.5 mm2, 3 core | |
| Tightening Torque | 0.5 Nm or less | |
| Weight (g) | Approx. 32 | |
*1: Models with PNP output and 2-wire DC system versions are scheduled for future release.
Technical manual, Software, CAD data
Information of Model Numbers
| Model Numbers | Overview |
|---|---|
| APS4-12CU-E | Shape：Non-Flush Mount SquareType Detection：Upper surface detection Effective Operating Distance：4 mm Output Format (Power Supply)：NPN NO 10 to 30 V DC Protection Level：IP67 (IEC) |
