NX-30 Series

Panel Computer

A comfortable operation experience with the familiar Windows OS

A 12.1-inch panel computer equipped with Windows 10 IoT Enterprise LTSC 2021.
Comfortable operation with the familiar Windows® OS.

Feature

  • Windows OS equipped
    Windows 10 IoT Enterprise LTSC 2021 (Long-Term Servicing Channel is a service model in which no feature updates are provided for 10 years after release, and only quality updates are delivered.)
  • Smartphone-like multi-touch operation
    Experience operation similar to a smartphone or tablet—quick and intuitive actions such as zooming, pinching, and scrolling.
  • Ecological design
    Improved maintainability by eliminating moving parts such as hard disk drives and cooling fans.
  • Equipped with a variety of interfaces
    Delivers rich expandability
    Serial port: 1 port
    RS-232C/422/485 (D-sub 9-pin)
    Ethernet: 2 ports
    USB Type-A: 4 ports
    USB 3.0 × 2 ports, USB 2.0 × 2 ports
    HDMI output: 1 port

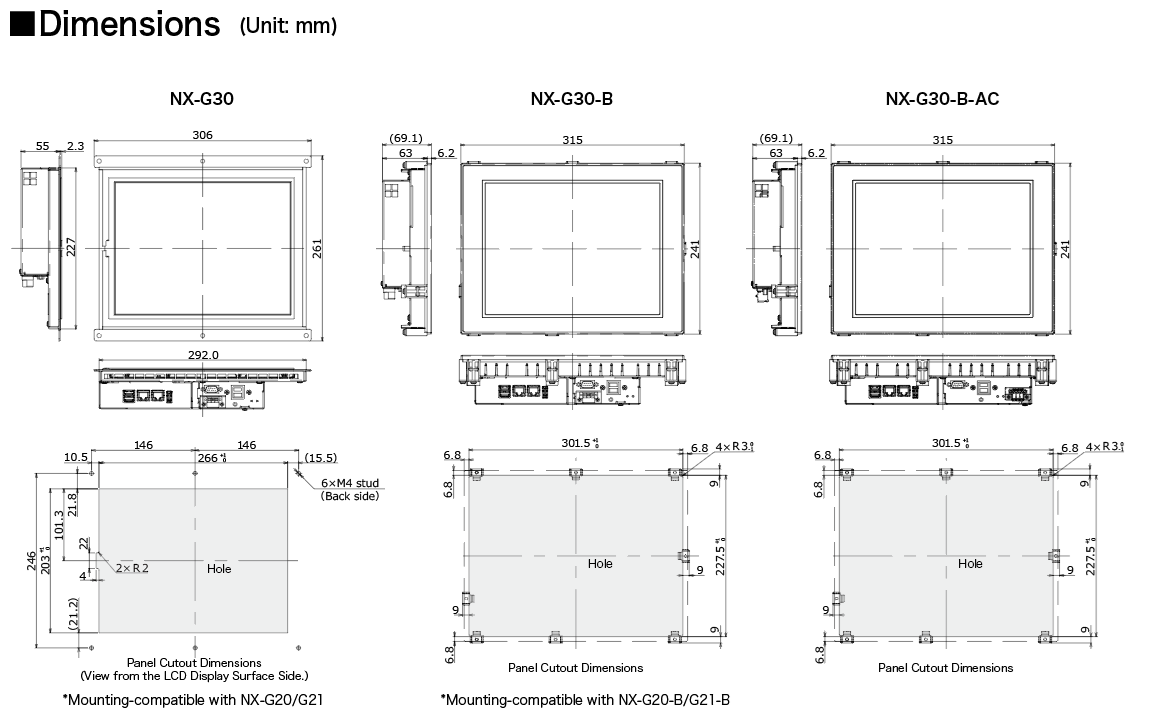

  • Two mounting methods available
    For installation on machinery, choose between the open-frame type (rear mounting) or the bezel type (front mounting).
  • Guaranteed long-term stable supply

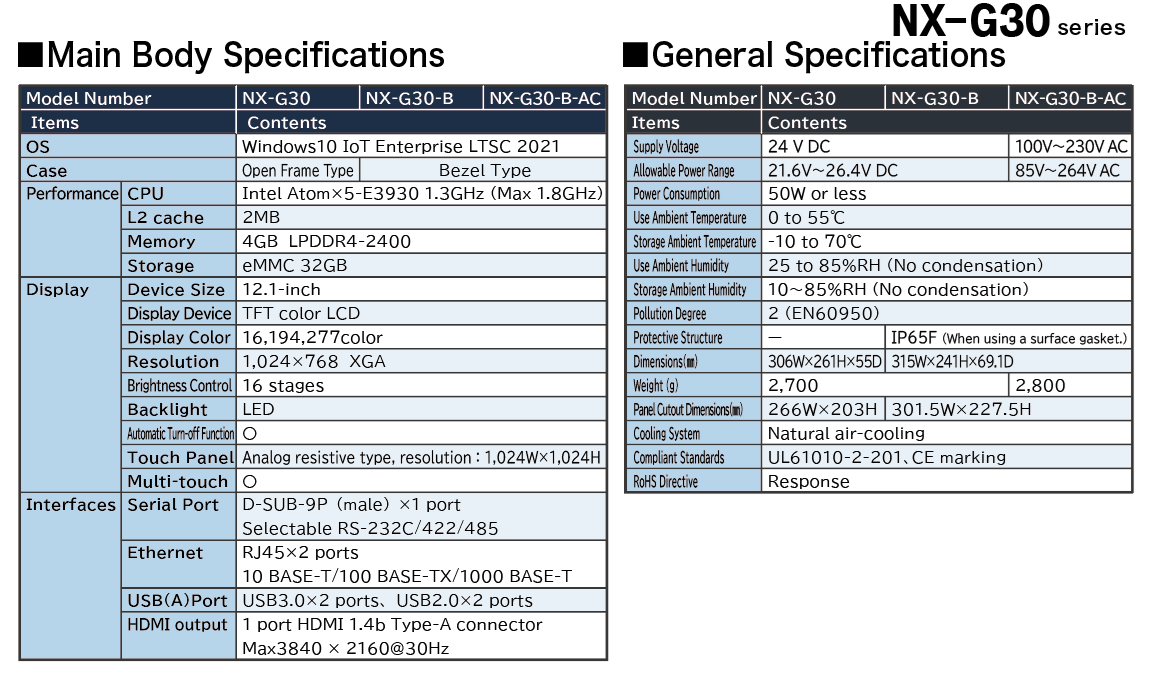

Information of Model Numbers

Main unit: 12.1-inch

Model Numbers Overview
NX-G30 Open-frame type Power supply: DC 24V
NX-G30-B Bezel type Power supply: DC 24V
NX-G30-B-AC Bezel type Power supply: AC 100/200V
