APS-F Series

PBT Resin Square Type, 2-wire/ 3-wire DC System

●Large and Highly Visible Indicator Lamp
The large LED indicator is clearly visible from multiple directions, which simplifies operation checks and installation adjustments.

●Simple Wiring
The 2-wire DC System allows for easy wiring and is compatible with both sink and source loads.

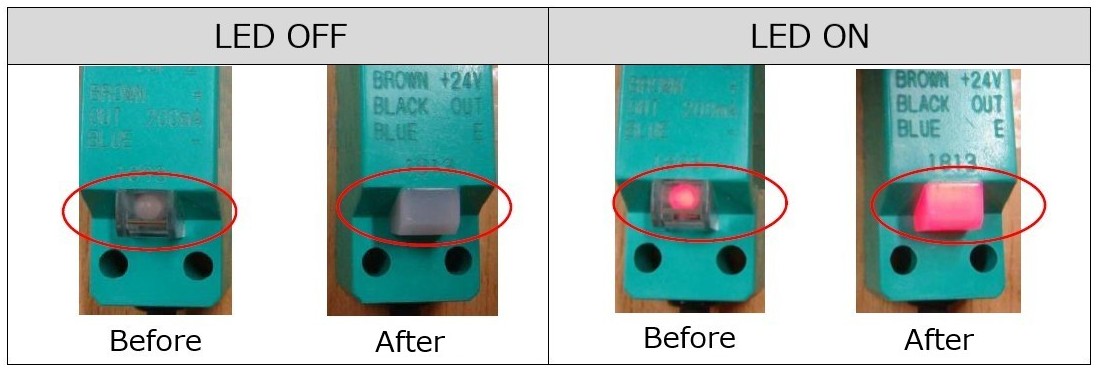

[Notice of Change to LED Indicator Window for 2-wire Models (ending in "-Z")]
For products manufactured in or after January 2022, the LED indicator window has been changed from transparent to milky white.
Please refer to the updated image to see the change.

Feature

– Wide variety
– Maximum detection distance: 10 mm
– Front Surface detection
– Models of different frequency are available for adjacent installation
– NO/NPN/PNP output

Technical manual, Software, CAD data

CAD data of APS-F Series (20 KB)

Information of Model Numbers

2-wire DC System

Model Numbers Overview
APS3-16F-Z Shape：Non-Flush Mount, square Type
Effective Operating Distance：3 mm
Output Format (Power Supply)： NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
APS5-18F-Z Shape：Non-Flush Mount, square, Type
Effective Operating Distance：5 mm
Output Format (Power Supply)： NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
APS10-30F-Z Shape：Non-Flush Mount, square, Type
Effective Operating Distance：10 mm
Output Format (Power Supply)： NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface

3-wire DC System

Model Numbers Overview
APS3-16F-E Shape：Non-Flush Mount, square Type
Effective Operating Distance：3 mm
Output Format (Power Supply)： NPN NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
APS3-16F-EH Shape：Non-Flush Mount, square Type
Effective Operating Distance：3 mm
Output Format (Power Supply)： NPN NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
Frequency Classification：High
APS3-16F-E2 Shape：Non-Flush Mount, square Type
Effective Operating Distance：3 mm
Output Format (Power Supply)： PNP NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
APS5-18F-E Shape：Non-Flush Mount, square Type
Effective Operating Distance：5 mm
Output Format (Power Supply)： NPN NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
APS5-18F-EL Shape：Non-Flush Mount, square Type
Effective Operating Distance：5 mm
Output Format (Power Supply)： NPN NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
Frequency Classification：Low
APS5-18F-EH Shape：Non-Flush Mount, square Type
Effective Operating Distance：5 mm
Output Format (Power Supply)： NPN NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
Frequency Classification：High
APS5-18F-E2 Shape：Non-Flush Mount, square Type
Effective Operating Distance：5 mm
Output Format (Power Supply)： PNP NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
APS5-18F-E2H Shape：Non-Flush Mount, square Type
Effective Operating Distance：5 mm
Output Format (Power Supply)： PNP NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
Frequency Classification：High
APS10-30F-E Shape：Non-Flush Mount, square, Type
Effective Operating Distance：10 mm
Output Format (Power Supply)： NPN NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
APS10-30F-EⅬ Shape：Non-Flush Mount, square, Type
Effective Operating Distance：10 mm
Output Format (Power Supply)：NPN NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
Frequency Classification：Low
APS10-30F-E2 Shape：Non-Flush Mount, square, Type
Effective Operating Distance：10 mm
Output Format (Power Supply)： PNP NO 10 to 30 V DC
Protection Level：IP67
Detection：Front Surface
