Connecting to a computer

Posted11/20/2025

Updated11/20/2025

Bysales-eng

Question

I heard that the programmable cam JX-CAM can be configured by connecting it to a computer.
How can I obtain the configuration software and what connection cable is required?

Answer

You can download the configuration software here.
The connection cable is a combination of the S-9CNS1 conversion connector and the Z-20JP communication cable.
If your computer does not have a serial port, please use a commercially available USB/serial conversion cable.

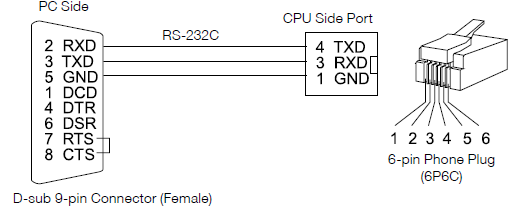

Wiring diagram
